Compu Partner has many years of experience in the design, development, installation and delivery of vending machines for car parks.
We offer a range of standardised solutions based on our extensive experience with harsh climates and applicable legislation in European countries.
It is possible to fulfil individual wishes either by customising existing models or developing completely new machines with your own design.

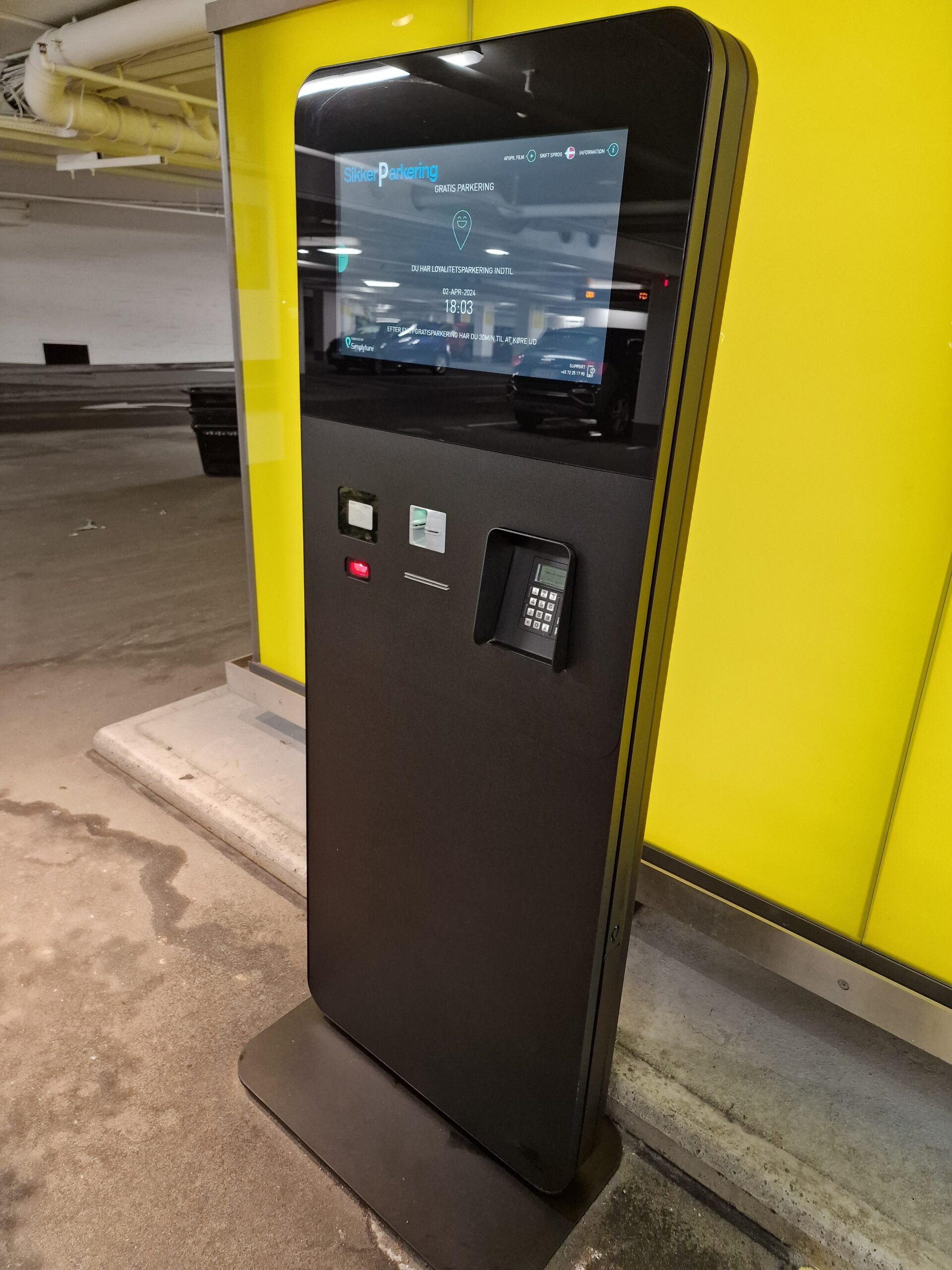

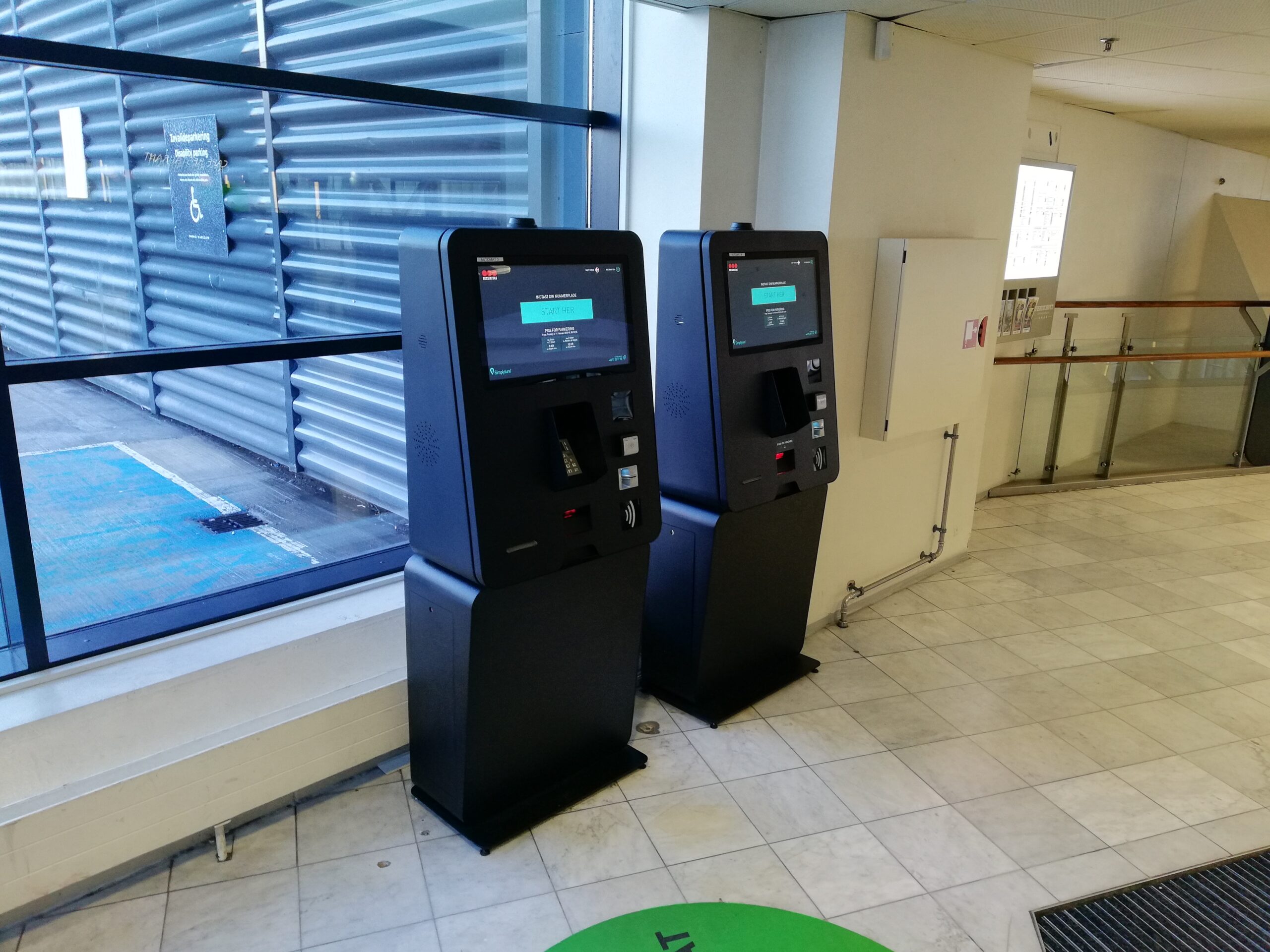

Our most popular parking payment machine, available in different variants that can also be customised to suit individual needs.

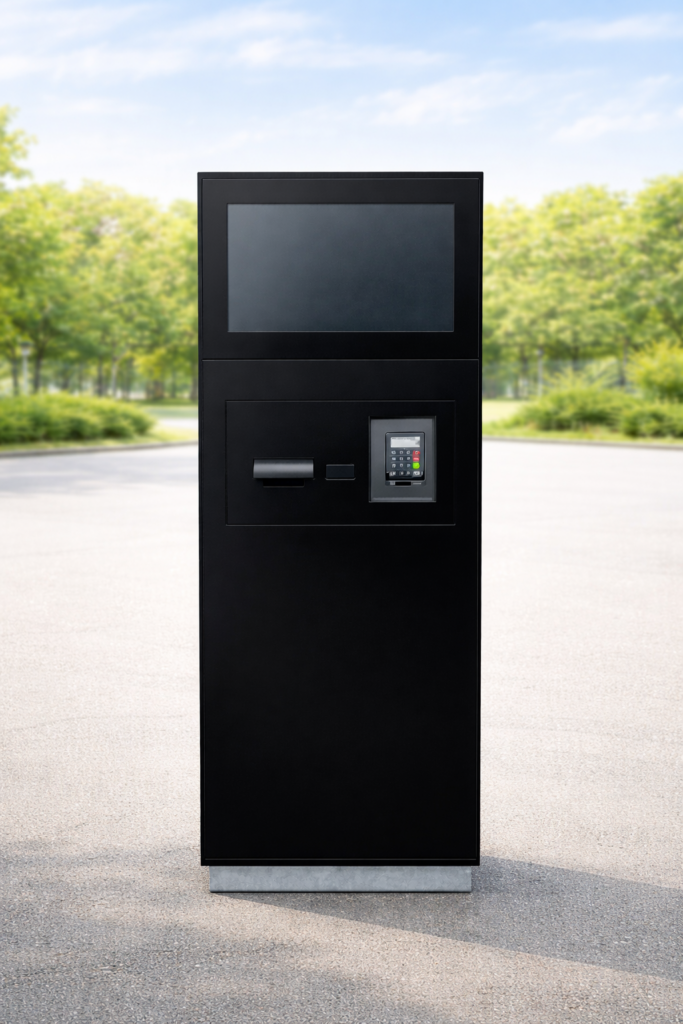

Model Berlin is constructed in aluminium and equipped as standard with a 21.5” industry-grade touchscreen, payment equipment and receipt printer
All components are designed for 24/7 operation in demanding environments, and both hardware and technical design are of a very high standard - for example, an integrated fuse box provides extra security.
Indoor solutions live up to IP44. The outdoor model fulfils IP54, with IP56 as an option.
The vending machine comes fully configured with selected software and hardware installed and tested - ready for final configuration via remote software from the customer.

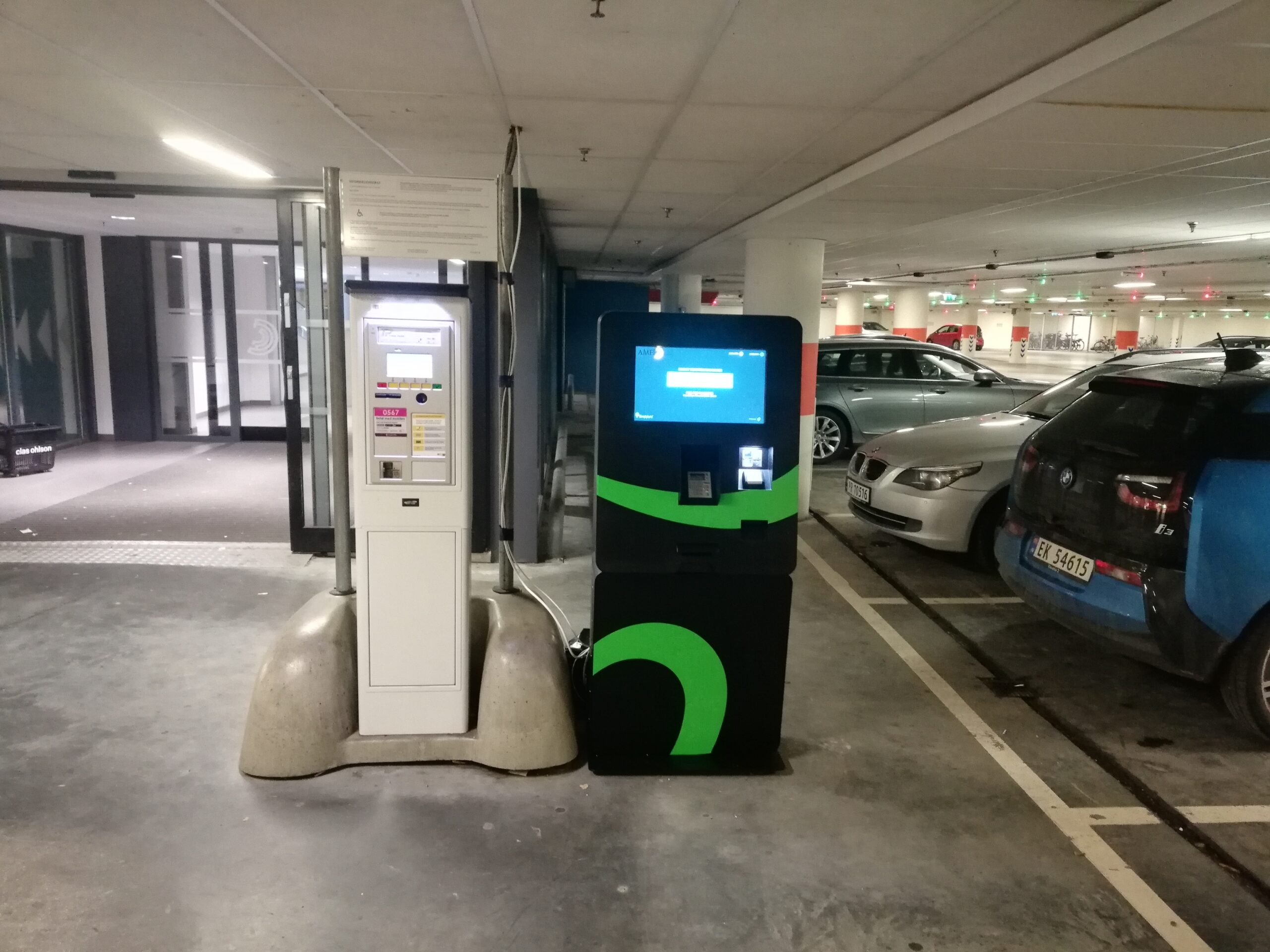

If the vending machine is to be installed in indoor but unheated locations, e.g. underground car parks, you can choose the Indoor model with optional built-in heating.
The vending machine is available in special colours for a small surcharge and is designed and assembled in Denmark.
= Standard = Option
| Specs / Variant |
Indoor Floor |
Indoor Wall |
Outdoor Floor |
| 21.5” Pro Display | |||
| Nits |
300 |
300 |
1600 |
| 24/7/365 |
|
|
|
| PC | |||
| Intel N100 8GB/250GB |
|
|
|
| Win 11 enterprise |
|
|
|
| Win 10 enterprise |
|
|
|
| Receipt printer | |||
| 80 mm thermal print |
|
|
|
| Payment equipment | |||
| NETS Self4000 |
|
|
|
| Verifone UX700 |
|
|
|
| Other | |||
| Coin Basic |
|
|
|
| Coin Smarthopper |
|
|
|
| Adjustable height EAA |
|
||
| Thermostatically controlled heating |
|
|
|
| 2D barcode scanner |
|
|
|
| Special colour coating |
|
|
|
| APC UPS |
|
|
|
| IP class |
IP44 |
IP44 |
|
| IK class |
IK08 |
IK08 |
IK08 |
| Dimensions W/H/D cm incl. base |
65x165x37 |
60,1x100x19 |
60.1x165x19 |
| Warranty - electronics |
18 months send-in |
18 months send-in |
18 months send-in |
| Warranty - Cabinet |
60 months |
60 months |
60 months |

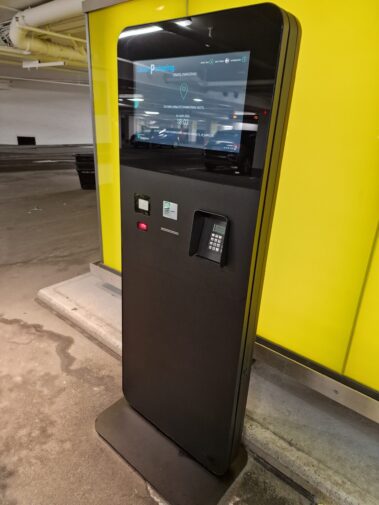

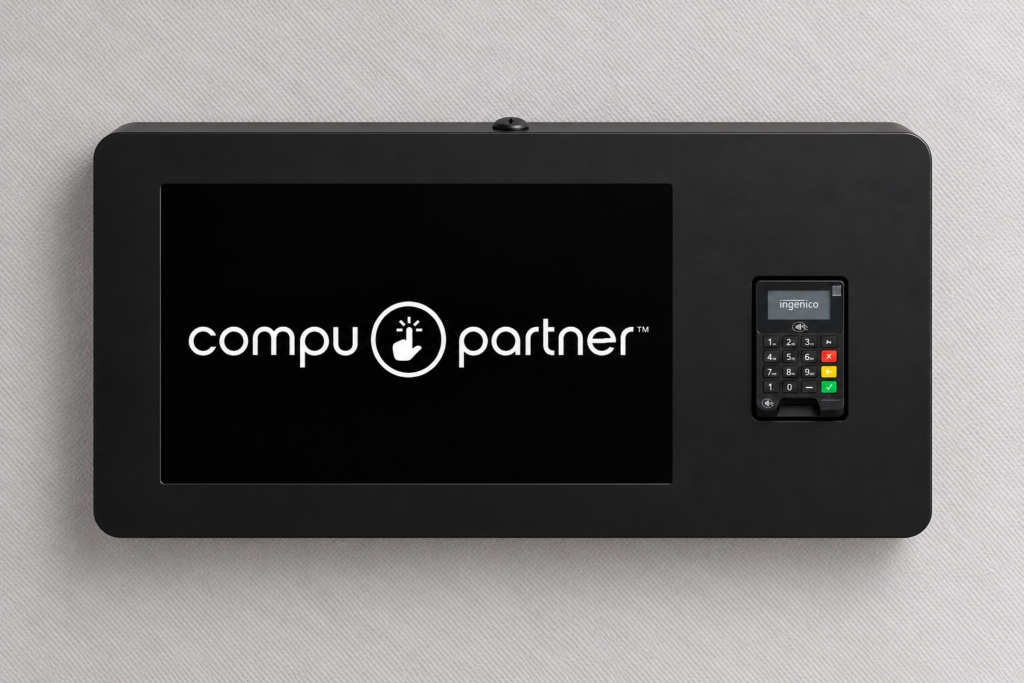

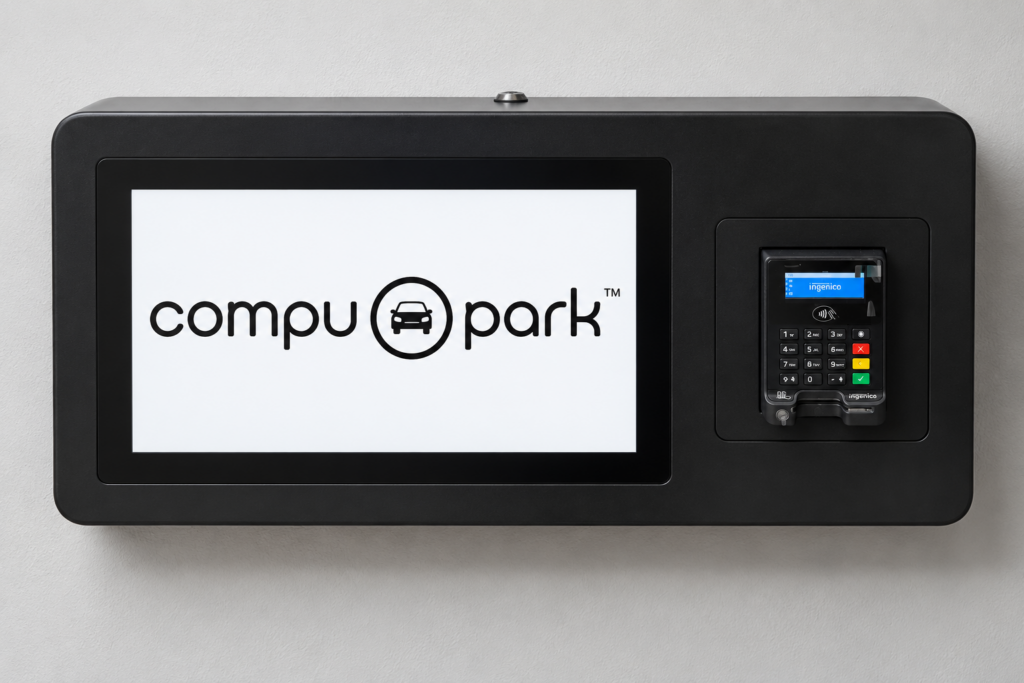

This model is the first in our new budget series - but there's no compromise on quality.
The vending machine is built in powder-coated aluminium, with a touchscreen from Ilyama, one of the leading brands on the market. The built-in industrial-grade PC comes with your choice of Windows 10 or 11 LTSC. Includes 5-port Gigabit switch and fault current relay for extra safety.
The vending machine can be delivered with a fascia plate or fitted with payment equipment such as Verifone UX700 Android-based or Self4000 from NETS.
